2. 创建Channel

参考：创建一个新的channel

创建通道：

运行下面的程序来为coreandfirstchannel通道创建一个“创建通道的交易”

1
configtxgen -profile CoreAndFirstChannel -outputCreateChannelTx ./channel-artifacts/coreandfirstchannel.tx -channelID coreandfirstchannel

执行结果如下：

1
2
3
4
2020-12-24 14:29:40.728 CST [common.tools.configtxgen] main -> INFO 001 Loading configuration
2020-12-24 14:29:40.739 CST [common.tools.configtxgen.localconfig] Load -> INFO 002 Loaded configuration: /Users/apple/code/open-source/blockchain/hyperledger/supply-finance/configtx/configtx.yaml
2020-12-24 14:29:40.739 CST [common.tools.configtxgen] doOutputChannelCreateTx -> INFO 003 Generating new channel configtx
2020-12-24 14:29:40.750 CST [common.tools.configtxgen] doOutputChannelCreateTx -> INFO 004 Writing new channel tx

设置环境变量，以核心企业(core.supply.com)管理员身份操作peerCLI;然后使用下面的命令把交易发给order服务创建通道：

1
peer channel create -o localhost:8050  --ordererTLSHostnameOverride orderer.supply.com -c coreandfirstchannel -f ./channel-artifacts/coreandfirstchannel.tx --outputBlock ./channel-artifacts/coreandfirstchannel.block --tls --cafile ${PWD}/organizations/ordererOrganizations/supply.com/orderers/orderer.supply.com/msp/tlscacerts/tlsca.supply.com-cert.pem

正确执行之后的日志：

1
2
3
4
5
6
7
8
9
10
11
12
2020-12-24 15:59:28.470 CST [channelCmd] InitCmdFactory -> INFO 001 Endorser and orderer connections initialized
2020-12-24 15:59:28.490 CST [cli.common] readBlock -> INFO 002 Expect block, but got status: &{NOT_FOUND}
2020-12-24 15:59:28.497 CST [channelCmd] InitCmdFactory -> INFO 003 Endorser and orderer connections initialized
2020-12-24 15:59:28.701 CST [cli.common] readBlock -> INFO 004 Expect block, but got status: &{SERVICE_UNAVAILABLE}
2020-12-24 15:59:28.708 CST [channelCmd] InitCmdFactory -> INFO 005 Endorser and orderer connections initialized
2020-12-24 15:59:28.917 CST [cli.common] readBlock -> INFO 006 Expect block, but got status: &{SERVICE_UNAVAILABLE}
2020-12-24 15:59:28.924 CST [channelCmd] InitCmdFactory -> INFO 007 Endorser and orderer connections initialized
2020-12-24 15:59:29.134 CST [cli.common] readBlock -> INFO 008 Expect block, but got status: &{SERVICE_UNAVAILABLE}
2020-12-24 15:59:29.141 CST [channelCmd] InitCmdFactory -> INFO 009 Endorser and orderer connections initialized
2020-12-24 15:59:29.349 CST [cli.common] readBlock -> INFO 00a Expect block, but got status: &{SERVICE_UNAVAILABLE}
2020-12-24 15:59:29.357 CST [channelCmd] InitCmdFactory -> INFO 00b Endorser and orderer connections initialized
2020-12-24 15:59:29.566 CST [cli.common] readBlock -> INFO 00c Received block: 0

报错信息记录：

1
2
3
4
5
(base) apple@WHOAMIdeMacBook-Pro:~/code/open-source/blockchain/hyperledger/supply-finance$     peer channel create -o localhost:8051  --ordererTLSHostnameOverride orderer.supply.com -c coreandfirstchannel -f ./channel-artifacts/coreandfirstchannel.tx --outputBlock ./channel-artifacts/coreandfirstchannel.block --tls --cafile ${PWD}/organizations/ordererOrganizations/supply.com/orderers/orderer.supply.com/msp/tlscacerts/tlsca.supply.com-cert.pem
2020-12-24 15:56:56.602 CST [comm.tls] ClientHandshake -> ERRO 001 Client TLS handshake failed after 5.225381ms with error: x509: certificate is valid for peer0.core.supply.com, peer0, not orderer.supply.com remoteaddress=[::1]:8051
2020-12-24 15:56:57.611 CST [comm.tls] ClientHandshake -> ERRO 002 Client TLS handshake failed after 3.907471ms with error: x509: certificate is valid for peer0.core.supply.com, peer0, not orderer.supply.com remoteaddress=[::1]:8051
2020-12-24 15:56:59.315 CST [comm.tls] ClientHandshake -> ERRO 003 Client TLS handshake failed after 4.52302ms with error: x509: certificate is valid for peer0.core.supply.com, peer0, not orderer.supply.com remoteaddress=[::1]:8051
Error: failed to create deliver client for orderer: orderer client failed to connect to localhost:8051: failed to create new connection: context deadline exceeded

错误原因：peer channel create -o localhost:8051 命令-o应该传入order服务的地址和端口。

把核心企业和一级供应商的peer加入通道

核心企业的peer加入通道

使用下面的命令将核心企业的peer加入通道（确认已经设置了核心企业的环境变量）：

1
peer channel join -b ./channel-artifacts/coreandfirstchannel.block

成功信息如下：

1
2
2020-12-24 16:46:40.206 CST [channelCmd] InitCmdFactory -> INFO 001 Endorser and orderer connections initialized
2020-12-24 16:46:40.235 CST [channelCmd] executeJoin -> INFO 002 Successfully submitted proposal to join channel

报错信息记录:

1
2
3
4
5
(base) apple@WHOAMIdeMacBook-Pro:~/code/open-source/blockchain/hyperledger/supply-finance$     peer channel join -b ./channel-artifacts/coreandfirstchannel.block
2020-12-24 16:18:23.258 CST [comm.tls] ClientHandshake -> ERRO 001 Client TLS handshake failed after 2.895228ms with error: x509: certificate is valid for peer0.core.supply.com, peer0, not localhost remoteaddress=[::1]:8051
2020-12-24 16:18:24.266 CST [comm.tls] ClientHandshake -> ERRO 002 Client TLS handshake failed after 4.537447ms with error: x509: certificate is valid for peer0.core.supply.com, peer0, not localhost remoteaddress=[::1]:8051
2020-12-24 16:18:25.659 CST [comm.tls] ClientHandshake -> ERRO 003 Client TLS handshake failed after 4.16728ms with error: x509: certificate is valid for peer0.core.supply.com, peer0, not localhost remoteaddress=[::1]:8051
Error: error getting endorser client for channel: endorser client failed to connect to localhost:8051: failed to create new connection: context deadline exceeded

**错误原因：**未知。

**解决方式：**把Profiles里面的Organizations信息统一修改，与环境变量保持一致

1
2
3
4
5
6
Organizations:
    - *GylCoreOrg1MSP
    - *GylFOrg1MSP
    - *GylSOrg1MSP
    - *GylSOrg2MSP

然后把上面步骤中生成的加密材料信息、区块信息都删除，容器和volume全部删除；重新执行一遍。

通过获取通道信息确认加入成功

获取通道信息

1
peer channel getinfo -c coreandfirstchannel

可以看到如下信息：

1
2
2020-12-24 16:53:01.633 CST [channelCmd] InitCmdFactory -> INFO 001 Endorser and orderer connections initialized
Blockchain info: {"height":1,"currentBlockHash":"kXOOwW8prt0XPvgEGMDrzdt1nNH8T7qlObL9eT8FZ7c="}

一级供应商加入通道

设置环境变量，然后拉取通道的创世纪区块(因为是测试本次忽略)：

1
peer channel fetch 0 ./channel-artifacts/coreandfirstchannel.block -o localhost:8050  --ordererTLSHostnameOverride orderer.supply.com -c coreandfirstchannel --tls --cafile ${PWD}/organizations/ordererOrganizations/supply.com/orderers/orderer.supply.com/msp/tlscacerts/tlsca.supply.com-cert.pem

加入通道：

1
peer channel join -b ./channel-artifacts/coreandfirstchannel.block

成功信息如下：

1
2
2020-12-24 17:06:30.499 CST [channelCmd] InitCmdFactory -> INFO 001 Endorser and orderer connections initialized
2020-12-24 17:06:30.527 CST [channelCmd] executeJoin -> INFO 002 Successfully submitted proposal to join channel

报错信息如下：

1
2
(base) apple@WHOAMIdeMacBook-Pro:~/code/open-source/blockchain/hyperledger/supply-finance$     peer channel join -b ./channel-artifacts/coreandfirstchannel.block
2020-12-24 17:01:05.904 CST [main] InitCmd -> ERRO 001 Cannot run peer because cannot init crypto, specified path "/Users/apple/code/open-source/blockchain/hyperledger/supply-finance/organizations/peerOrganizations/f1.supply.com/users/Admin@f1.supply.com/msp/organizations/peerOrganizations/f1.supply.com/users/Admin@f1.supply.com/msp" does not exist or cannot be accessed: stat /Users/apple/code/open-source/blockchain/hyperledger/supply-finance/organizations/peerOrganizations/f1.supply.com/users/Admin@f1.supply.com/msp/organizations/peerOrganizations/f1.supply.com/users/Admin@f1.supply.com/msp: no such file or directory

**错误原因：**因为在设置环境变量时不是在supply-finance目录下设置的，所以设置的环境变量有问题，重新设置一下。

设置锚节点

为GylFOrg1MSP设置锚节点

因为上面已经设置了一级供应商（GylFOrg1MSP）的环境变量，所以先设置GylFOrg1MSP的锚节点：

拉取最新的channel配置区块
1
peer channel fetch config channel-artifacts/coreandfirstchannel_config_block.pb -o localhost:8050 --ordererTLSHostnameOverride orderer.supply.com -c coreandfirstchannel --tls --cafile ${PWD}/organizations/ordererOrganizations/supply.com/orderers/orderer.supply.com/msp/tlscacerts/tlsca.supply.com-cert.pem

成功信息如下：

1
2
3
4
2020-12-24 17:56:48.435 CST [channelCmd] InitCmdFactory -> INFO 001 Endorser and orderer connections initialized
2020-12-24 17:56:48.439 CST [cli.common] readBlock -> INFO 002 Received block: 0
2020-12-24 17:56:48.439 CST [channelCmd] fetch -> INFO 003 Retrieving last config block: 0
2020-12-24 17:56:48.442 CST [cli.common] readBlock -> INFO 004 Received block: 0
修改通道配置区块

切换到channel-artifacts然后把区块内容转换成json格式：

1
2
3
4
5
cd channel-artifacts
configtxlator proto_decode --input coreandfirstchannel_config_block.pb --type common.Block --output coreandfirstchannel_config_block.json
jq .data.data[0].payload.data.config coreandfirstchannel_config_block.json > coreandfirstchannel_config.json
# copy一份
cp coreandfirstchannel_config.json coreandfirstchannel_config_copy.json

使用jq 工具来添加GylFOrg1MSP组织的锚节点到通道配置。

1
jq '.channel_group.groups.Application.groups.GylFOrg1MSP.values += {"AnchorPeers":{"mod_policy": "Admins","value":{"anchor_peers": [{"host": "peer0.f1.supply.com","port": 8053}]},"version": "0"}}' coreandfirstchannel_config_copy.json > modified_coreandfirstchannel_config.json

将原始的和修改后的通道配置都转换回protobuf格式，并计算它们之间的差异。

1
2
3
configtxlator proto_encode --input coreandfirstchannel_config.json --type common.Config --output coreandfirstchannel_config.pb
configtxlator proto_encode --input modified_coreandfirstchannel_config.json --type common.Config --output modified_coreandfirstchannel_config.pb
configtxlator compute_update --channel_id coreandfirstchannel --original coreandfirstchannel_config.pb --updated modified_coreandfirstchannel_config.pb --output coreandfirstchannel_config_update.pb
把更新后的交易打包成一个更新通道配置的交易：
1
2
3
configtxlator proto_decode --input coreandfirstchannel_config_update.pb --type common.ConfigUpdate --output coreandfirstchannel_config_update.json
echo '{"payload":{"header":{"channel_header":{"channel_id":"coreandfirstchannel", "type":2}},"data":{"config_update":'$(cat coreandfirstchannel_config_update.json)'}}}' | jq . > coreandfirstchannel_config_update_in_envelope.json
configtxlator proto_encode --input coreandfirstchannel_config_update_in_envelope.json --type common.Envelope --output coreandfirstchannel_config_update_in_envelope.pb
提交“更新通道配置的交易”

进到上一级目录cd ..，之后运行命令将交易提交给排序服务进行通道配置的更新：

1
2
cd ..
peer channel update -f channel-artifacts/coreandfirstchannel_config_update_in_envelope.pb -c coreandfirstchannel -o localhost:8050  --ordererTLSHostnameOverride orderer.supply.com --tls --cafile ${PWD}/organizations/ordererOrganizations/supply.com/orderers/orderer.supply.com/msp/tlscacerts/tlsca.supply.com-cert.pem

执行成功的结果：

1
2
2020-12-24 18:13:59.246 CST [channelCmd] InitCmdFactory -> INFO 001 Endorser and orderer connections initialized
2020-12-24 18:13:59.265 CST [channelCmd] update -> INFO 002 Successfully submitted channel update

错误信息记录：

1
2
2020-12-24 18:12:49.469 CST [channelCmd] InitCmdFactory -> INFO 001 Endorser and orderer connections initialized
Error: got unexpected status: BAD_REQUEST -- error applying config update to existing channel 'coreandfirstchannel': error authorizing update: ConfigUpdate for channel 'channel1' but envelope for channel 'coreandfirstchannel'

**错误原因：**在修改配置的时候指定channel名称错误，修正重新执行一遍。

验证，获取通道信息:peer channel getinfo -c coreandfirstchannel
1
2
3
supply-finance$     peer channel getinfo -c coreandfirstchannel
2020-12-24 18:19:31.275 CST [channelCmd] InitCmdFactory -> INFO 001 Endorser and orderer connections initialized
Blockchain info: {"height":2,"currentBlockHash":"h5CY6RfVNNg8kYWPZ+tZqdMIrGoXeoDSQFd0YfiBhRk=","previousBlockHash":"kXOOwW8prt0XPvgEGMDrzdt1nNH8T7qlObL9eT8FZ7c="}

为核心企业GylCoreOrg1MSP设置锚节点

修改环境变量，然后拉取最新的channel配置区块

1
peer channel fetch config channel-artifacts/coreandfirstchannel_config_block.pb -o localhost:8050 --ordererTLSHostnameOverride orderer.supply.com -c coreandfirstchannel --tls --cafile ${PWD}/organizations/ordererOrganizations/supply.com/orderers/orderer.supply.com/msp/tlscacerts/tlsca.supply.com-cert.pem
修改通道配置区块

切换到channel-artifacts然后把区块内容转换成json格式：

1
2
3
4
5
cd channel-artifacts
configtxlator proto_decode --input coreandfirstchannel_config_block.pb --type common.Block --output coreandfirstchannel_config_block.json
jq .data.data[0].payload.data.config coreandfirstchannel_config_block.json > coreandfirstchannel_config.json
# copy一份
cp coreandfirstchannel_config.json coreandfirstchannel_config_copy.json

使用jq 工具来添加GylCoreOrg1MSP组织的锚节点到通道配置。

1
jq '.channel_group.groups.Application.groups.GylCoreOrg1MSP.values += {"AnchorPeers":{"mod_policy": "Admins","value":{"anchor_peers": [{"host": "peer0.core.supply.com","port": 8051}]},"version": "0"}}' coreandfirstchannel_config_copy.json > modified_coreandfirstchannel_config.json

将原始的和修改后的通道配置都转换回protobuf格式，并计算它们之间的差异。

1
2
3
configtxlator proto_encode --input coreandfirstchannel_config.json --type common.Config --output coreandfirstchannel_config.pb
configtxlator proto_encode --input modified_coreandfirstchannel_config.json --type common.Config --output modified_coreandfirstchannel_config.pb
configtxlator compute_update --channel_id coreandfirstchannel --original coreandfirstchannel_config.pb --updated modified_coreandfirstchannel_config.pb --output coreandfirstchannel_config_update.pb
把更新后的交易打包成一个更新通道配置的交易：
1
2
3
configtxlator proto_decode --input coreandfirstchannel_config_update.pb --type common.ConfigUpdate --output coreandfirstchannel_config_update.json
echo '{"payload":{"header":{"channel_header":{"channel_id":"coreandfirstchannel", "type":2}},"data":{"config_update":'$(cat coreandfirstchannel_config_update.json)'}}}' | jq . > coreandfirstchannel_config_update_in_envelope.json
configtxlator proto_encode --input coreandfirstchannel_config_update_in_envelope.json --type common.Envelope --output coreandfirstchannel_config_update_in_envelope.pb
提交“更新通道配置的交易”

进到上一级目录cd ..，之后运行命令将交易提交给排序服务进行通道配置的更新：

1
2
cd ..
peer channel update -f channel-artifacts/coreandfirstchannel_config_update_in_envelope.pb -c coreandfirstchannel -o localhost:8050  --ordererTLSHostnameOverride orderer.supply.com --tls --cafile ${PWD}/organizations/ordererOrganizations/supply.com/orderers/orderer.supply.com/msp/tlscacerts/tlsca.supply.com-cert.pem

执行成功的结果：

1
2
2020-12-24 18:13:59.246 CST [channelCmd] InitCmdFactory -> INFO 001 Endorser and orderer connections initialized
2020-12-24 18:13:59.265 CST [channelCmd] update -> INFO 002 Successfully submitted channel update
验证，获取通道信息
1
2
3
$ peer channel getinfo -c coreandfirstchannel
2020-12-24 18:24:51.015 CST [channelCmd] InitCmdFactory -> INFO 001 Endorser and orderer connections initialized
Blockchain info: {"height":3,"currentBlockHash":"e52oT2HAiTxyeh4a30kTx32xLJAKIWa7rm6PVOn8eoA=","previousBlockHash":"h5CY6RfVNNg8kYWPZ+tZqdMIrGoXeoDSQFd0YfiBhRk="}

部署测试chaincode来确认

打包

1
peer lifecycle chaincode package basic.tar.gz --path /Users/apple/code/open-source/blockchain/hyperledger/fabric-samples/asset-transfer-basic/chaincode-go/ --lang golang --label basic_1.0

运行完上面的命令，查看当前目录会发现多了basic.tar.gz包，说明打包成功。

安装链码包

一级供应商和核心企业都要安装：
核心企业：

1
peer lifecycle chaincode install basic.tar.gz --peerAddresses localhost:8051 --tlsRootCertFiles ${PWD}/organizations/peerOrganizations/core.supply.com/peers/peer0.core.supply.com/tls/ca.crt

一级供应商：

1
peer lifecycle chaincode install basic.tar.gz --peerAddresses localhost:8053 --tlsRootCertFiles ${PWD}/organizations/peerOrganizations/f1.supply.com/peers/peer0.f1.supply.com/tls/ca.crt

安装成功输出结果如下：

1
2
2020-12-24 18:51:45.793 CST [cli.lifecycle.chaincode] submitInstallProposal -> INFO 001 Installed remotely: response:<status:200 payload:"\nJbasic_1.0:4ec191e793b27e953ff2ede5a8bcc63152cecb1e4c3f301a26e22692c61967ad\022\tbasic_1.0" >
2020-12-24 18:51:45.793 CST [cli.lifecycle.chaincode] submitInstallProposal -> INFO 002 Chaincode code package identifier: basic_1.0:4ec191e793b27e953ff2ede5a8bcc63152cecb1e4c3f301a26e22692c61967ad

批准链码定义

查看已经安装的chaincode

1
peer lifecycle chaincode queryinstalled

成功结果如下：

1
2
Installed chaincodes on peer:
Package ID: basic_1.0:4ec191e793b27e953ff2ede5a8bcc63152cecb1e4c3f301a26e22692c61967ad, Label: basic_1.0

将链码的信息保存为一个变量

1
export CC_PACKAGE_ID=basic_1.0:4ec191e793b27e953ff2ede5a8bcc63152cecb1e4c3f301a26e22692c61967ad

批准链码定义

核心企业和一级供应商都需要执行此命令：

1
peer lifecycle chaincode approveformyorg -o localhost:8050  --ordererTLSHostnameOverride orderer.supply.com --channelID coreandfirstchannel --name basic --version 1.0 --package-id $CC_PACKAGE_ID --sequence 1 --tls --cafile ${PWD}/organizations/ordererOrganizations/supply.com/orderers/orderer.supply.com/msp/tlscacerts/tlsca.supply.com-cert.pem

成功结果如下：

1
2020-12-24 19:02:47.351 CST [chaincodeCmd] ClientWait -> INFO 001 txid [d7e2224f63a1516ffeeed26ec5c8f69872141f5864b3602a1409679472692840] committed with status (VALID) at localhost:8051

将链码定义提交到通道

检查channel上的成员是否已经批准了链码定义：

1
peer lifecycle chaincode checkcommitreadiness --channelID coreandfirstchannel --name basic --version 1.0 --sequence 1 --tls --cafile ${PWD}/organizations/ordererOrganizations/supply.com/orderers/orderer.supply.com/msp/tlscacerts/tlsca.supply.com-cert.pem --output json

成功结果如下：

1
2
3
4
5
6
{
	"approvals": {
		"GylCoreOrg1MSP": true,
		"GylFOrg1MSP": true
	}
}

在两个组织都批准之后，执行下面的命令将链码定义提交到通道：

1
peer lifecycle chaincode commit -o localhost:8050  --ordererTLSHostnameOverride orderer.supply.com --channelID coreandfirstchannel --name basic --version 1.0 --sequence 1 --tls --cafile ${PWD}/organizations/ordererOrganizations/supply.com/orderers/orderer.supply.com/msp/tlscacerts/tlsca.supply.com-cert.pem --peerAddresses localhost:8051 --tlsRootCertFiles ${PWD}/organizations/peerOrganizations/core.supply.com/peers/peer0.core.supply.com/tls/ca.crt --peerAddresses localhost:8053 --tlsRootCertFiles ${PWD}/organizations/peerOrganizations/f1.supply.com/peers/peer0.f1.supply.com/tls/ca.crt

成功结果如下：

1
2
2020-12-24 19:10:18.071 CST [chaincodeCmd] ClientWait -> INFO 001 txid [5b363e2e419dbb1307726fe44428e23ae1b0e5feaf86cb577383b6e8a68464d6] committed with status (VALID) at localhost:8053
2020-12-24 19:10:18.094 CST [chaincodeCmd] ClientWait -> INFO 002 txid [5b363e2e419dbb1307726fe44428e23ae1b0e5feaf86cb577383b6e8a68464d6] committed with status (VALID) at localhost:8051

使用 peer lifecycle chaincode querycommitted 命令来确认链码定义已经提交到通道。

1
peer lifecycle chaincode querycommitted --channelID coreandfirstchannel --name basic --cafile ${PWD}/organizations/ordererOrganizations/supply.com/orderers/orderer.supply.com/msp/tlscacerts/tlsca.supply.com-cert.pem

成功结果如下：

1
2
Committed chaincode definition for chaincode 'basic' on channel 'coreandfirstchannel':
Version: 1.0, Sequence: 1, Endorsement Plugin: escc, Validation Plugin: vscc, Approvals: [GylCoreOrg1MSP: true, GylFOrg1MSP: true]

调用链码

1
peer chaincode invoke -o localhost:8050 --ordererTLSHostnameOverride orderer.supply.com --tls --cafile ${PWD}/organizations/ordererOrganizations/supply.com/orderers/orderer.supply.com/msp/tlscacerts/tlsca.supply.com-cert.pem -C coreandfirstchannel -n basic --peerAddresses localhost:8051 --tlsRootCertFiles ${PWD}/organizations/peerOrganizations/core.supply.com/peers/peer0.core.supply.com/tls/ca.crt --peerAddresses localhost:8053 --tlsRootCertFiles ${PWD}/organizations/peerOrganizations/f1.supply.com/peers/peer0.f1.supply.com/tls/ca.crt -c '{"function":"InitLedger","Args":[]}'

成功信息：

1
2020-12-25 17:26:22.583 CST [chaincodeCmd] chaincodeInvokeOrQuery -> INFO 001 Chaincode invoke successful. result: status:200

查询调用后的结果

1
peer chaincode query -C coreandfirstchannel -n basic -c '{"Args":["GetAllAssets"]}'

成功结果如下,说明channel部署成功：

1
[{"ID":"asset1","color":"blue","size":5,"owner":"Tomoko","appraisedValue":300},{"ID":"asset2","color":"red","size":5,"owner":"Brad","appraisedValue":400},{"ID":"asset3","color":"green","size":10,"owner":"Jin Soo","appraisedValue":500},{"ID":"asset4","color":"yellow","size":10,"owner":"Max","appraisedValue":600},{"ID":"asset5","color":"black","size":15,"owner":"Adriana","appraisedValue":700},{"ID":"asset6","color":"white","size":15,"owner":"Michel","appraisedValue":800}]

错误信息如下：

1
Error: endorsement failure during invoke. response: status:500 message:"error in simulation: failed to execute transaction 207cf99d289ffe9deca6a320aba59cc155fae02d19d51c9cfebc9943ffc7794d: could not launch chaincode basic_1.0:4ec191e793b27e953ff2ede5a8bcc63152cecb1e4c3f301a26e22692c61967ad: error starting container: error starting container: API error (404): network _test not found"

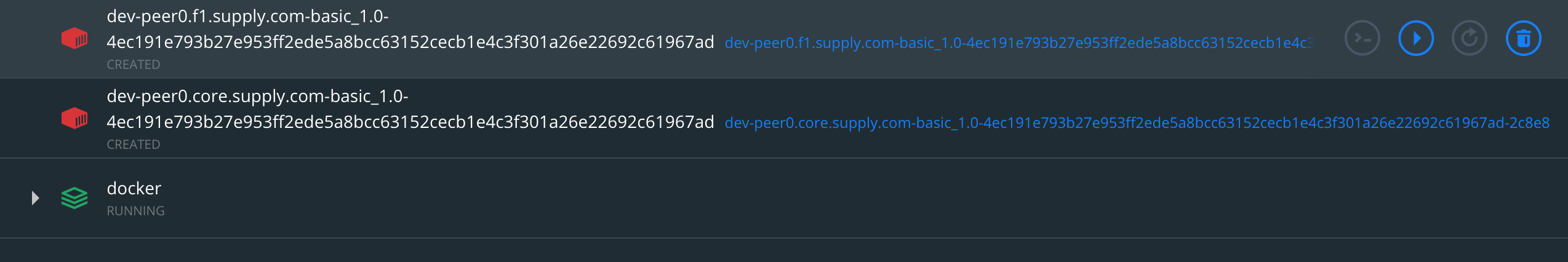

**错误原因：**因为chaincode的容器没有启动成功,直接指定容器启动报错如下：

image-20201224192439225

1
2
3
/supply-finance$     docker start bc47970e58a5
Error response from daemon: network _test not found
Error: failed to start containers: bc47970e58a5

问题解决：

因为在docker-compose.yml文件中配置了下面的环境变量，在启动chaincode容器时会链接到这个网络。

之前的配置是：

1
- CORE_VM_DOCKER_HOSTCONFIG_NETWORKMODE=${COMPOSE_PROJECT_NAME}_test

修改后重新启动，问题解决。

1
- CORE_VM_DOCKER_HOSTCONFIG_NETWORKMODE=docker_test

为什么修改成docker_test呢，可以查看使用docker-compose命令启动容器时的日志：

1
Creating network "docker_test" with the default driver

核心企业、一级和二级供应商加入同一个channel

创建通道：

运行下面的程序来为alljoinchannel通道创建一个“创建通道的交易”

1
2
3
configtxgen -profile AllPlayChannel -outputCreateChannelTx ./channel-artifacts/alljoinchannel.tx -channelID alljoinchannel
# 使用下面的命令把交易发给order服务创建通道：
peer channel create -o localhost:8050  --ordererTLSHostnameOverride orderer.supply.com -c alljoinchannel -f ./channel-artifacts/alljoinchannel.tx --outputBlock ./channel-artifacts/alljoinchannel.block --tls --cafile ${PWD}/organizations/ordererOrganizations/supply.com/orderers/orderer.supply.com/msp/tlscacerts/tlsca.supply.com-cert.pem

加入通道

使用下面的命令将peer加入通道,所有节点都需要执行：

1
2
3
peer channel join -b ./channel-artifacts/alljoinchannel.block
# 通过获取通道信息确认加入成功
peer channel getinfo -c alljoinchannel

为各个组织设置锚节点

GylCoreOrg1MSP

1
2
3
4
5
6
7
8
peer channel fetch config channel-artifacts/alljoinchannel_config_block.pb -o localhost:8050 --ordererTLSHostnameOverride orderer.supply.com -c alljoinchannel --tls --cafile ${PWD}/organizations/ordererOrganizations/supply.com/orderers/orderer.supply.com/msp/tlscacerts/tlsca.supply.com-cert.pem
# 切换到`channel-artifacts`然后把区块内容转换成json格式：
cd channel-artifacts
configtxlator proto_decode --input alljoinchannel_config_block.pb --type common.Block --output alljoinchannel_config_block.json
jq .data.data[0].payload.data.config alljoinchannel_config_block.json > alljoinchannel_config.json
cp alljoinchannel_config.json alljoinchannel_config_copy.json
# 使用`jq`工具添加各个组织的锚节点配置
jq '.channel_group.groups.Application.groups.GylCoreOrg1MSP.values += {"AnchorPeers":{"mod_policy": "Admins","value":{"anchor_peers": [{"host": "peer0.core.supply.com","port": 8051}]},"version": "0"}}' alljoinchannel_config_copy.json > modified_alljoinchannel_config.json
1
2
3
4
5
6
7
8
# 将原始的和修改后的通道配置都转换回protobuf格式，并计算它们之间的差异。
configtxlator proto_encode --input alljoinchannel_config.json --type common.Config --output alljoinchannel_config.pb
configtxlator proto_encode --input modified_alljoinchannel_config.json --type common.Config --output modified_alljoinchannel_config.pb
configtxlator compute_update --channel_id alljoinchannel --original alljoinchannel_config.pb --updated modified_alljoinchannel_config.pb --output alljoinchannel_config_update.pb
# 把更新后的交易打包成一个更新通道配置的交易：
configtxlator proto_decode --input alljoinchannel_config_update.pb --type common.ConfigUpdate --output alljoinchannel_config_update.json
echo '{"payload":{"header":{"channel_header":{"channel_id":"alljoinchannel", "type":2}},"data":{"config_update":'$(cat alljoinchannel_config_update.json)'}}}' | jq . > alljoinchannel_config_update_in_envelope.json
configtxlator proto_encode --input alljoinchannel_config_update_in_envelope.json --type common.Envelope --output alljoinchannel_config_update_in_envelope.pb
1
2
3
4
5
# 进到上一级目录`cd ..`，之后运行命令将交易提交给排序服务进行通道配置的更新：
cd ..
peer channel update -f channel-artifacts/alljoinchannel_config_update_in_envelope.pb -c alljoinchannel -o localhost:8050  --ordererTLSHostnameOverride orderer.supply.com --tls --cafile ${PWD}/organizations/ordererOrganizations/supply.com/orderers/orderer.supply.com/msp/tlscacerts/tlsca.supply.com-cert.pem
# 验证，获取通道信息:
peer channel getinfo -c alljoinchannel

GylFOrg1MSP

1
2
3
4
5
6
7
8
peer channel fetch config channel-artifacts/alljoinchannel_config_block.pb -o localhost:8050 --ordererTLSHostnameOverride orderer.supply.com -c alljoinchannel --tls --cafile ${PWD}/organizations/ordererOrganizations/supply.com/orderers/orderer.supply.com/msp/tlscacerts/tlsca.supply.com-cert.pem
# 切换到`channel-artifacts`然后把区块内容转换成json格式：
cd channel-artifacts
configtxlator proto_decode --input alljoinchannel_config_block.pb --type common.Block --output alljoinchannel_config_block.json
jq .data.data[0].payload.data.config alljoinchannel_config_block.json > alljoinchannel_config.json
cp alljoinchannel_config.json alljoinchannel_config_copy.json
# 使用`jq`工具添加各个组织的锚节点配置
jq '.channel_group.groups.Application.groups.GylFOrg1MSP.values += {"AnchorPeers":{"mod_policy": "Admins","value":{"anchor_peers": [{"host": "peer0.f1.supply.com","port": 8053}]},"version": "0"}}' alljoinchannel_config_copy.json > modified_alljoinchannel_config.json
1
2
3
4
5
6
7
8
# 将原始的和修改后的通道配置都转换回protobuf格式，并计算它们之间的差异。
configtxlator proto_encode --input alljoinchannel_config.json --type common.Config --output alljoinchannel_config.pb
configtxlator proto_encode --input modified_alljoinchannel_config.json --type common.Config --output modified_alljoinchannel_config.pb
configtxlator compute_update --channel_id alljoinchannel --original alljoinchannel_config.pb --updated modified_alljoinchannel_config.pb --output alljoinchannel_config_update.pb
# 把更新后的交易打包成一个更新通道配置的交易：
configtxlator proto_decode --input alljoinchannel_config_update.pb --type common.ConfigUpdate --output alljoinchannel_config_update.json
echo '{"payload":{"header":{"channel_header":{"channel_id":"alljoinchannel", "type":2}},"data":{"config_update":'$(cat alljoinchannel_config_update.json)'}}}' | jq . > alljoinchannel_config_update_in_envelope.json
configtxlator proto_encode --input alljoinchannel_config_update_in_envelope.json --type common.Envelope --output alljoinchannel_config_update_in_envelope.pb
1
2
3
4
5
# 进到上一级目录`cd ..`，之后运行命令将交易提交给排序服务进行通道配置的更新：
cd ..
peer channel update -f channel-artifacts/alljoinchannel_config_update_in_envelope.pb -c alljoinchannel -o localhost:8050  --ordererTLSHostnameOverride orderer.supply.com --tls --cafile ${PWD}/organizations/ordererOrganizations/supply.com/orderers/orderer.supply.com/msp/tlscacerts/tlsca.supply.com-cert.pem
# 验证，获取通道信息:
peer channel getinfo -c alljoinchannel

GylSOrg1MSP

1
2
3
4
5
6
7
8
peer channel fetch config channel-artifacts/alljoinchannel_config_block.pb -o localhost:8050 --ordererTLSHostnameOverride orderer.supply.com -c alljoinchannel --tls --cafile ${PWD}/organizations/ordererOrganizations/supply.com/orderers/orderer.supply.com/msp/tlscacerts/tlsca.supply.com-cert.pem
# 切换到`channel-artifacts`然后把区块内容转换成json格式：
cd channel-artifacts
configtxlator proto_decode --input alljoinchannel_config_block.pb --type common.Block --output alljoinchannel_config_block.json
jq .data.data[0].payload.data.config alljoinchannel_config_block.json > alljoinchannel_config.json
cp alljoinchannel_config.json alljoinchannel_config_copy.json
# 使用`jq`工具添加各个组织的锚节点配置
jq '.channel_group.groups.Application.groups.GylSOrg1MSP.values += {"AnchorPeers":{"mod_policy": "Admins","value":{"anchor_peers": [{"host": "peer0.s1.supply.com","port": 8055}]},"version": "0"}}' alljoinchannel_config_copy.json > modified_alljoinchannel_config.json
1
2
3
4
5
6
7
8
# 将原始的和修改后的通道配置都转换回protobuf格式，并计算它们之间的差异。
configtxlator proto_encode --input alljoinchannel_config.json --type common.Config --output alljoinchannel_config.pb
configtxlator proto_encode --input modified_alljoinchannel_config.json --type common.Config --output modified_alljoinchannel_config.pb
configtxlator compute_update --channel_id alljoinchannel --original alljoinchannel_config.pb --updated modified_alljoinchannel_config.pb --output alljoinchannel_config_update.pb
# 把更新后的交易打包成一个更新通道配置的交易：
configtxlator proto_decode --input alljoinchannel_config_update.pb --type common.ConfigUpdate --output alljoinchannel_config_update.json
echo '{"payload":{"header":{"channel_header":{"channel_id":"alljoinchannel", "type":2}},"data":{"config_update":'$(cat alljoinchannel_config_update.json)'}}}' | jq . > alljoinchannel_config_update_in_envelope.json
configtxlator proto_encode --input alljoinchannel_config_update_in_envelope.json --type common.Envelope --output alljoinchannel_config_update_in_envelope.pb
1
2
3
4
5
# 进到上一级目录`cd ..`，之后运行命令将交易提交给排序服务进行通道配置的更新：
cd ..
peer channel update -f channel-artifacts/alljoinchannel_config_update_in_envelope.pb -c alljoinchannel -o localhost:8050  --ordererTLSHostnameOverride orderer.supply.com --tls --cafile ${PWD}/organizations/ordererOrganizations/supply.com/orderers/orderer.supply.com/msp/tlscacerts/tlsca.supply.com-cert.pem
# 验证，获取通道信息:
peer channel getinfo -c alljoinchannel

GylSOrg1MSP

1
2
3
4
5
6
7
8
peer channel fetch config channel-artifacts/alljoinchannel_config_block.pb -o localhost:8050 --ordererTLSHostnameOverride orderer.supply.com -c alljoinchannel --tls --cafile ${PWD}/organizations/ordererOrganizations/supply.com/orderers/orderer.supply.com/msp/tlscacerts/tlsca.supply.com-cert.pem
# 切换到`channel-artifacts`然后把区块内容转换成json格式：
cd channel-artifacts
configtxlator proto_decode --input alljoinchannel_config_block.pb --type common.Block --output alljoinchannel_config_block.json
jq .data.data[0].payload.data.config alljoinchannel_config_block.json > alljoinchannel_config.json
cp alljoinchannel_config.json alljoinchannel_config_copy.json
# 使用`jq`工具添加各个组织的锚节点配置
jq '.channel_group.groups.Application.groups.GylSOrg2MSP.values += {"AnchorPeers":{"mod_policy": "Admins","value":{"anchor_peers": [{"host": "peer0.s2.supply.com","port": 8151}]},"version": "0"}}' alljoinchannel_config_copy.json > modified_alljoinchannel_config.json
1
2
3
4
5
6
7
8
# 将原始的和修改后的通道配置都转换回protobuf格式，并计算它们之间的差异。
configtxlator proto_encode --input alljoinchannel_config.json --type common.Config --output alljoinchannel_config.pb
configtxlator proto_encode --input modified_alljoinchannel_config.json --type common.Config --output modified_alljoinchannel_config.pb
configtxlator compute_update --channel_id alljoinchannel --original alljoinchannel_config.pb --updated modified_alljoinchannel_config.pb --output alljoinchannel_config_update.pb
# 把更新后的交易打包成一个更新通道配置的交易：
configtxlator proto_decode --input alljoinchannel_config_update.pb --type common.ConfigUpdate --output alljoinchannel_config_update.json
echo '{"payload":{"header":{"channel_header":{"channel_id":"alljoinchannel", "type":2}},"data":{"config_update":'$(cat alljoinchannel_config_update.json)'}}}' | jq . > alljoinchannel_config_update_in_envelope.json
configtxlator proto_encode --input alljoinchannel_config_update_in_envelope.json --type common.Envelope --output alljoinchannel_config_update_in_envelope.pb
1
2
3
4
5
# 进到上一级目录`cd ..`，之后运行命令将交易提交给排序服务进行通道配置的更新：
cd ..
peer channel update -f channel-artifacts/alljoinchannel_config_update_in_envelope.pb -c alljoinchannel -o localhost:8050  --ordererTLSHostnameOverride orderer.supply.com --tls --cafile ${PWD}/organizations/ordererOrganizations/supply.com/orderers/orderer.supply.com/msp/tlscacerts/tlsca.supply.com-cert.pem
# 验证，获取通道信息:
peer channel getinfo -c alljoinchannel
